Item no.: hs1226 /  Manufacturer no.: SA3200D

Synology 0 TB SA3200D 12bay NAS server, Black

  • Ethernet (RJ45)

Show all specificationsHide specifications

General information

Part numberhs1226
manufacturerSynology
Model nameSA3200D 12bay
Product type / categoryNAS server
Individual features12 bays for 2.5‘ SAS SSD/HDD drives and 3.5’ SAS HDD drives
Product linkwww.synology.com/de-de/products/SA3200D
Manufacturer part no.SA3200D
EAN code4711174723713

Material and color

Main color / manufacturer color nameBlack

Memory

Memory size8 GB
Maximum expansion (manufacturer's specification)32 GB

Mass storage

Storage capacity0 TB

Connections overview

Connections (device)Ethernet (RJ45)
Specifications of connectionsGigabit Ethernet (1 Gbit/s), 10 Gigabit Ethernet

Connections

USB-A2
Ethernet (RJ45)3
Ethernet (RJ45) specificationsGigabit Ethernet (1 Gbit/s), 10 Gigabit Ethernet
Ethernet (RJ45): additional description2x Ethernet (RJ45) 1 Gbit/s, 1x Ethernet (RJ45) 10 Gbit/s

Packaging content

Box content (general)Operating manual, Power cable
Additional content2x Netzkabel

Dimensions and weight

Device width48,2 cm
Device hight8,8 cm
Depth / thickness of the device72,4 cm
Net weight19,7 kg
Device dimensions48,2 cm x 8,8 cm x 72,4 cm
Show whole descriptionHide item description

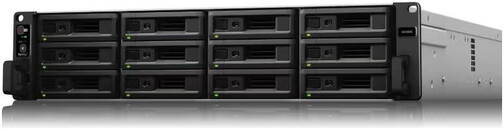

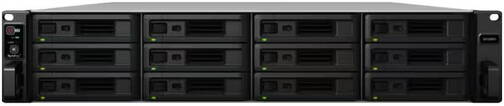

Synology Enterprise NAS SA-Series SA3200D, without hard disc

Give your business the data security and availability it needs

Optimise your data management with the Synology SA3200D!

The highly available storage solution with redundant controllers reduces downtime to less than one minute¹ and offers an outstanding price-performance ratio - all in a compact 2U enclosure.

Scalable for your growth
Expand your storage capacity flexibly: With two RXD1219sas expansion units, the SA3200D grows to up to 36 SAS drive bays and 576 TB of storage (maximum 200 TB per volume) - without interrupting operations.

Manage virtual machines easily
With the Virtual Machine Manager, you can test new software in isolated sandbox environments, securely separate customer projects and increase server flexibility. Windows, Linux and Virtual DSM can be run directly on your Synology NAS with just a few clicks.

Efficient storage virtualisation
The Synology iSCSI storage solution is fully compatible with common virtualisation platforms. VMware vSphere 6 and VAAI optimise storage operations, while Windows ODX accelerates data transfer. OpenStack Cinder support also allows you to use your Synology NAS as block-based storage.

  • Processor: Intel Xeon D-1521 Quad-Core, 2.4 GHz to 2.7 GHz
  • Memory: 8 GB ECC UDIMM DDR4 (expandable up to 64 GB)
  • Drive bays: 12, compatible with 2.5" and 3.5" dual-port SAS HDD, 2.5" dual-port SAS SSD
  • LAN connections: 2x Ethernet (RJ45) 1 Gbit/s, 1x Ethernet (RJ45) 10 Gbit/s
  • RAID: 0, 1, 5, 6, 10, JBOD



Show warranty and servicesHide warranty and services

Warranty and services

Duration and type of warranty3 years bring-in warranty
