General information
| Part number | me3402 |
| manufacturer | EIZO |
| Model name | EV3450XC FlexScan Curved Ultrawide |
| Product type / category | Display |
| Individual features | With stand |
| Energy efficiency | F |
| Energy consumption per 1000 hours | 25 kWh/1000h |
| Product link | https://www.eizo.ch/de/monitore/flexscan/ecoview-serie/ev3285-swiss-edition-schwarz |
| Manufacturer part no. | 22200 |
| EAN code | 4995047067368 |
Material and color
| Main material / case | Plastic |
| Main color / manufacturer color name | Black |
Display
| Display size (inch) | 34,1" |
| Screen technology, color space | LCD IPS (In Plane Switching) Display |
| Horizontal resolution (pixel) | 3.440 |
| Vertical resolution (pixel) | 1.440 |
| Resolution (density) | 109 ppi |
| Resolution and dpi | 3440 x 1440; 109 ppi |
| Brightness (max) | 350 nt |
| Contrast ratio | 1.000 :1 |
| Response time gray to gray | 5 ms |
| Viewing angle (horizontal) | 178 degrees |
| Viewing angle (vertical) | 178 degrees |
| Viewing angle (H / V) | 178 degrees (h) / 178 degrees (v) degrees |
Connections overview
| Connections (device) | USB 3.0 Typ-A, USB 3.1 Typ-C, HDMI, DisplayPort |
| Outputs: additional description | USB Hub (of which 1 port with battery charging function 2.1A) |
Connections
| USB-C | 1 |
| USB-C power delivery | 60 W |
| USB-A | 2 |
| HDMI | 2 |
| DisplayPort | 1 |
| 3.5mm mini jack | 1 |
| Audio connections: additional description | 3.5 mm headphone jack |
Power supply
| Power (max) | 163 W |
Packaging content
| Box content (general) | Operating manual |
| Cables included | DisplayPort cable, HDMI cable, USB-C cable, CH power cord |
Dimensions and weight
| Device width | 81,95 cm |
| Device hight | 38,5 cm |
| Depth / thickness of the device | 10,3 cm |
| Max. depth / thickness (monitors: with stand) | 24,2 cm |
| Net weight | 12,1 kg |
| Device dimensions | 81,95 cm x 38,5 cm x 10,3 cm |

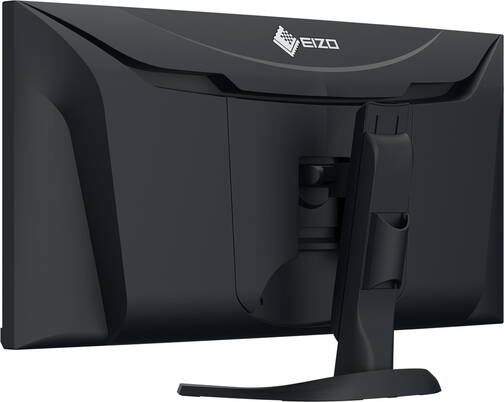

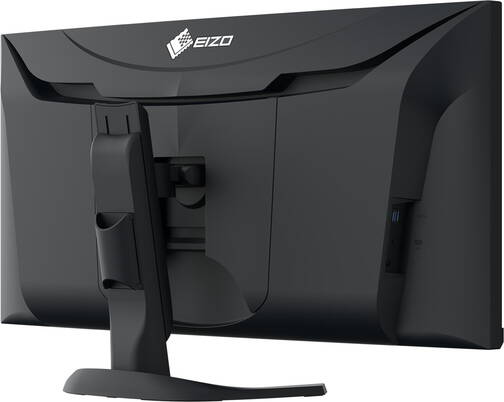

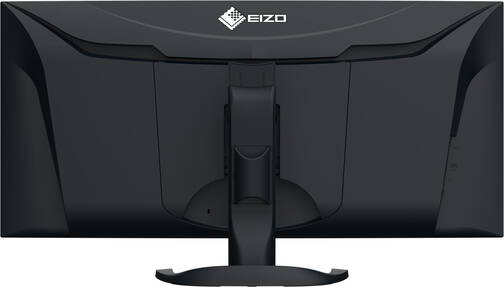

EIZO FlexScan EV3450XC Curved Ultrawide
The EV3450XC impresses with a 34.1-inch diagonal and an ultrawide aspect ratio of 21:9. Its 3440 x 1440 pixels (UWQHD) correspond to 2.4 times a Full HD resolution and combine with the screen area to produce a display with 109 ppi. The result: sharp, clear images Several applications can easily fit on the large monitor at the same time, so that a second monitor is usually not required. Image reproduction with the EV3450XC is sharp, clear, fast and flicker-free.
The EV3450XC's 5 megapixel webcam offers more than twice the resolution of Full HD, providing high-resolution image capture in natural colours for a vibrant web meeting experience.
The integrated microphone has noise cancelling, which reduces unwanted background noise. It also features echo cancellation, which identifies and removes noise from the monitor's internal speakers to prevent feedback. This ensures that your voice in web meetings is transmitted without interference and is intelligible to the person you are speaking to.
There are two 4-watt stereo speakers in the front panel of the monitor. The sound is clear and distinct, regardless of whether the monitor is used by a single person or by several people in a conference room.

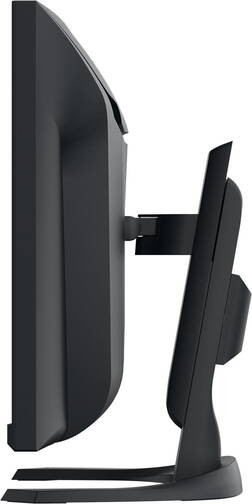

Ergonomic and stable: the adjustable stand focusses on ergonomics. You can turn and tilt the monitor to suit your back, neck and sitting posture. Its height can be infinitely adjusted and it can be lowered almost to the table or the base plate of the stand. This allows you to position the top line of the screen ergonomically below eye level.
The 94 W power supply via USB-C reliably charges small computers or notebooks. This frees up space on the desk, as there is no need for an additional computer power supply unit.
Warranty and services
| Duration and type of warranty | 5 years warranty with EIZO on-site exchange service |
