Item no.: km0417 /  Manufacturer no.: 27263

LMP 100 W USB 3.1 Typ-C Triple DisplayDock 4k desktop dock, Black

  • LMP 100 W Triple DisplayDock 4k desktop dock
  • 12 USB 3.1 Typ-C, USB-C 3.1 Gen 2
  • USB 3.0 Typ-A, USB 3.1 Typ-C, HDMI, Ethernet (RJ45), mini Jack, 3.5mm female connector
  • Compatible with iPad Air 13" (2024), iPad Air 13" (2025), iPad 11" (2025, 11. Gen., A16), iPad Pro 11" (2024), iPad Pro 11" (2025), iPad Pro 13" (2024), iPad Pro 13" (2025), iPad mini 7 (2024), iMac 24" M1 (2021), iMac 24" M3 (2023), iMac 24" M4 (2024), MB Air 13" with USB-C, MB Air 15" with USB-C, MB Air 13" M2 (2022), MB Air 13" M3 (2024), MB Air 13" M4 (2025), MB Air 15" M2 (2023), MB Air 15" M3 (2024), MB Air 15" M4 (2025), MB Pro 13" M1 (2020), MB Pro 13" M3 (2024), MB Pro 13" M2 (2022), MB Pro 14" M1 (2021), MB Pro 14" M2 (2023), MB Pro 14" M3 (2023), MB Pro 14" M3 Pro (2023), MB Pro 14" M3 Max (2023), MB Pro 14" M4 (2024), MB Pro 14" M4 Pro (2024), MB Pro 14" M4 Max (2024), MB Pro 14" M5 (2025), MB Pro 16,2" M1 (2021), MB Pro 16,2" M2 (2023), MB Pro 16,2" M3 (2023), MB Pro 16,2" M4 Pro (2024), MB Pro 16,2" M4 Max (2024), Apple Studio Display

Show all specificationsHide specifications

General information

Part numberkm0417
manufacturerLMP
Model nameTriple DisplayDock 4k
Product type / categorydesktop dock
Product linkhttps://lmp-adapter.com/de/produkt/usb-c-triple-displaydock-4k/
Manufacturer part no.27263
EAN code7640113438524

Compatibility

Compatible withiPad Air 13" (2024), iPad Air 13" (2025), iPad 11" (2025, 11. Gen., A16), iPad Pro 11" (2024), iPad Pro 11" (2025), iPad Pro 13" (2024), iPad Pro 13" (2025), iPad mini 7 (2024), iMac 24" M1 (2021), iMac 24" M3 (2023), iMac 24" M4 (2024), MB Air 13" with USB-C, MB Air 15" with USB-C, MB Air 13" M2 (2022), MB Air 13" M3 (2024), MB Air 13" M4 (2025), MB Air 15" M2 (2023), MB Air 15" M3 (2024), MB Air 15" M4 (2025), MB Pro 13" M1 (2020), MB Pro 13" M3 (2024), MB Pro 13" M2 (2022), MB Pro 14" M1 (2021), MB Pro 14" M2 (2023), MB Pro 14" M3 (2023), MB Pro 14" M3 Pro (2023), MB Pro 14" M3 Max (2023), MB Pro 14" M4 (2024), MB Pro 14" M4 Pro (2024), MB Pro 14" M4 Max (2024), MB Pro 14" M5 (2025), MB Pro 16,2" M1 (2021), MB Pro 16,2" M2 (2023), MB Pro 16,2" M3 (2023), MB Pro 16,2" M4 Pro (2024), MB Pro 16,2" M4 Max (2024), Apple Studio Display

Material and color

Main material / caseAluminium
Main color / manufacturer color nameBlack

Connections overview

Number of inputs12
Connections (device)USB 3.1 Typ-C
Input male / femalemale connector
Supplementary descriptionUSB-C 3.1 Gen 2
to connector (adapter, cable)USB 3.0 Typ-A, USB 3.1 Typ-C, HDMI, Ethernet (RJ45), mini Jack, 3.5mm
Output male / femalefemale connector

Connections

USB-C2
USB-C power delivery100 W
USB-A additional information2x USB-C 3.2 Gen2 (10G)
USB-A4
USB-A additional informationup to 5 Gbit/s | 1x BC 1.2 1.5A
HDMI3
HDMI specificationsmax. 4k, 60 Hz
HDMI: additional description1x HDMI 2.0 DP Altmode (bis zu 4K 60 Hz), 2x HDMI 2.0 (DisplayLink) (bis zu 4K 60 Hz)
Ethernet (RJ45)1
Ethernet (RJ45): additional description10/100/1000 Mbit/s
3.5mm mini jack1

Power supply

Power (max)100 W

Dimensions and weight

Device width11,4 cm
Device hight11,4 cm
Depth / thickness of the device3 cm
Net weight0,259 kg
Device dimensions11,4 cm x 11,4 cm x 3 cm
Show whole descriptionHide item description

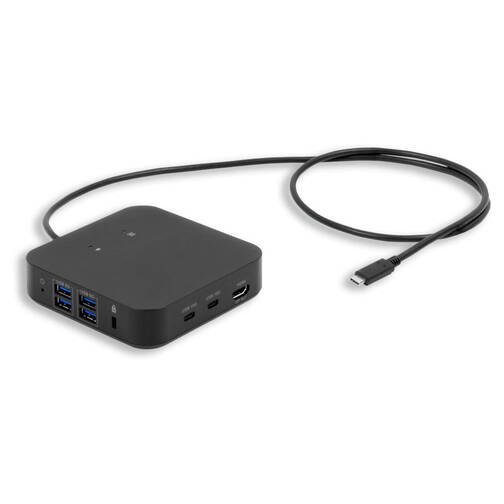

LMP USB-C Triple DisplayDock 4k, black

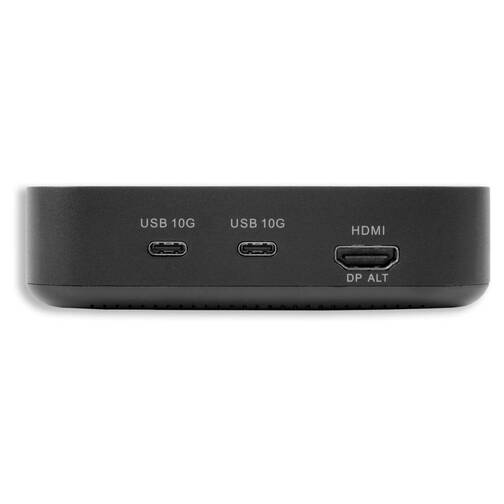

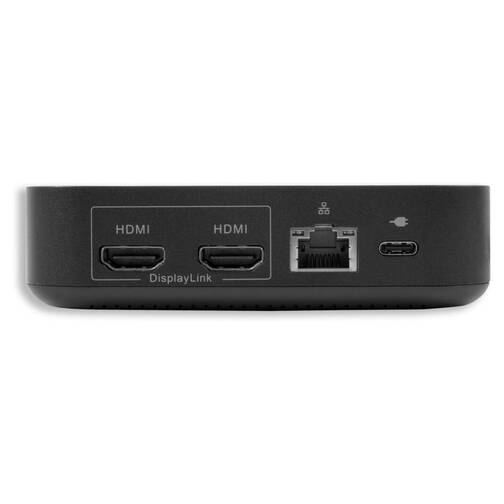

The LMP USB-C Triple DisplayDock 4K is a fully-fledged USB-C docking station with 12 ports that supports up to three 4K 60 Hz monitors via HDMI 2.0. Thanks to the DisplayLink video chipset (DisplayLink driver must be installed!), there are no restrictions on the number of external monitors, even for MacBook Air/Pro models with M1, M2 and M3 processors. Two of the three HDMI ports run on the DisplayLink 6950 chipset and use the USB protocol to transmit the video signal, while the third HDMI port uses the traditional DP Altmode signal and therefore does not require a driver.

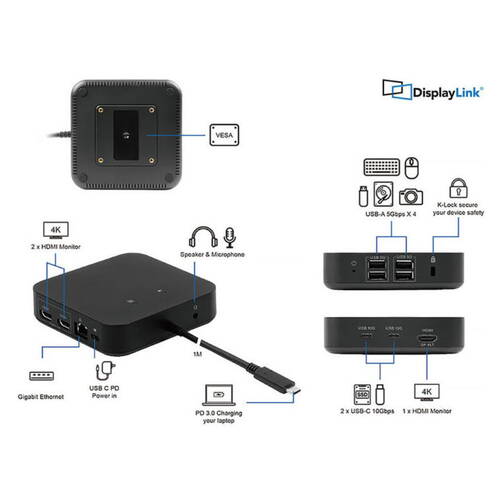

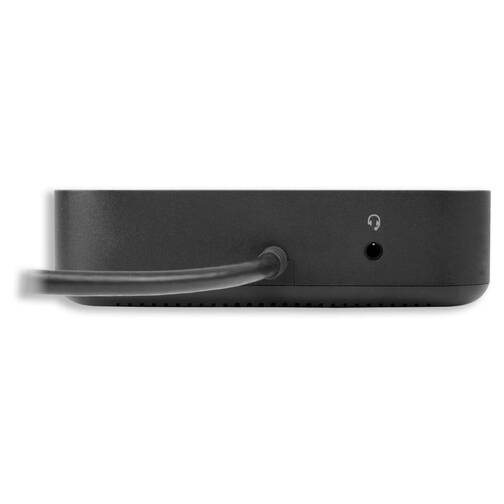

The Triple DisplayDock has a variety of additional ports, including Gigabit Ethernet, 4 USB-A (5G) ports, 2 USB-C (10G) ports, a 3.5mm audio input/output and a Kensington security slot. The dock delivers a pass-through power (Power Delivery 3.0) of up to 85 W to the connected host computer, ensuring sufficient power supply for the connected devices. A special USB-C port enables the use of an external USB-C Power Delivery (PD) power adapter (not included) to supply the Triple Display Dock and the host with power. The Triple-DisplayDock can also be operated without an external power adapter, but only with limited options. LED status indicators show the operating status.

Despite its extensive functions, the docking station is compact and portable. It measures just 11.4 x 11.4 cm, making it a practical solution both for the desk and for use on the move. The extra-long USB-C connection cable (1 m) helps to keep it clean on the desk.

Show warranty and servicesHide warranty and services

Warranty and services

Duration and type of warranty2 years bring-in warranty
