Item no.: km0416 /  Manufacturer no.: 23790

LMP 100 W USB 3.1 Typ-C DuoDock desktop dock, Silver

  • LMP 100 W DuoDock desktop dock
  • 9 USB 3.1 Typ-C, USB-C 3.1 Gen 2
  • USB 3.0 Typ-A, USB 3.1 Typ-C, HDMI, Ethernet (RJ45), mini Jack, 3.5mm, SD-Card Slot, microSD-Card Slot female connector
  • Compatible with iPad Air 13" (2024), iPad Air 13" (2025), iPad 11" (2025, 11. Gen., A16), iPad Pro 11" (2024), iPad Pro 11" (2025), iPad Pro 13" (2024), iPad Pro 13" (2025), iPad mini 7 (2024), iMac 24" M1 (2021), iMac 24" M3 (2023), iMac 24" M4 (2024), MB Air 13" with USB-C, MB Air 15" with USB-C, MB Air 13" M2 (2022), MB Air 13" M3 (2024), MB Air 13" M4 (2025), MB Air 15" M2 (2023), MB Air 15" M3 (2024), MB Air 15" M4 (2025), MB Pro 13" M1 (2020), MB Pro 13" M3 (2024), MB Pro 13" M2 (2022), MB Pro 14" M1 (2021), MB Pro 14" M2 (2023), MB Pro 14" M3 (2023), MB Pro 14" M3 Pro (2023), MB Pro 14" M3 Max (2023), MB Pro 14" M4 (2024), MB Pro 14" M4 Pro (2024), MB Pro 14" M4 Max (2024), MB Pro 14" M5 (2025), MB Pro 16,2" M1 (2021), MB Pro 16,2" M2 (2023), MB Pro 16,2" M3 (2023), MB Pro 16,2" M4 Pro (2024), MB Pro 16,2" M4 Max (2024)

Show all specificationsHide specifications

General information

Part numberkm0416
manufacturerLMP
Model nameDuoDock
Product type / categorydesktop dock
Product linkhttps://lmp-adapter.com/de/produkt/lmp-usb-c-duodock/
Manufacturer part no.23790
EAN code7640113436438

Compatibility

Compatible withiPad Air 13" (2024), iPad Air 13" (2025), iPad 11" (2025, 11. Gen., A16), iPad Pro 11" (2024), iPad Pro 11" (2025), iPad Pro 13" (2024), iPad Pro 13" (2025), iPad mini 7 (2024), iMac 24" M1 (2021), iMac 24" M3 (2023), iMac 24" M4 (2024), MB Air 13" with USB-C, MB Air 15" with USB-C, MB Air 13" M2 (2022), MB Air 13" M3 (2024), MB Air 13" M4 (2025), MB Air 15" M2 (2023), MB Air 15" M3 (2024), MB Air 15" M4 (2025), MB Pro 13" M1 (2020), MB Pro 13" M3 (2024), MB Pro 13" M2 (2022), MB Pro 14" M1 (2021), MB Pro 14" M2 (2023), MB Pro 14" M3 (2023), MB Pro 14" M3 Pro (2023), MB Pro 14" M3 Max (2023), MB Pro 14" M4 (2024), MB Pro 14" M4 Pro (2024), MB Pro 14" M4 Max (2024), MB Pro 14" M5 (2025), MB Pro 16,2" M1 (2021), MB Pro 16,2" M2 (2023), MB Pro 16,2" M3 (2023), MB Pro 16,2" M4 Pro (2024), MB Pro 16,2" M4 Max (2024)

Material and color

Main material / caseAluminium
Main color / manufacturer color nameSilver

Connections overview

Number of inputs9
Connections (device)USB 3.1 Typ-C
Input male / femalemale connector
Supplementary descriptionUSB-C 3.1 Gen 2
to connector (adapter, cable)USB 3.0 Typ-A, USB 3.1 Typ-C, HDMI, Ethernet (RJ45), mini Jack, 3.5mm, SD-Card Slot, microSD-Card Slot
Output male / femalefemale connector

Connections

USB-C3
USB-C power delivery100 W
USB-A additional information2x USB-C 3.1 Gen 2 (bis zu 10 Gbit/s, bis zu 100 W), 1x USB-C 3.1 (bis zu 5 Gbit/s, bis zu 100 W)
USB-A3
USB-A additional informationup to 5 Gbit/s | 1x BC 1.2 1.5A
HDMI1
HDMI specificationsmax. 4k, 60 Hz
Ethernet (RJ45)1
Ethernet (RJ45): additional description10/100/1000 Mbit/s
3.5mm mini jack1
SD-Card slot1
microSD-Card slot1

Power supply

Power (max)100 W

Dimensions and weight

Device width13,3 cm
Device hight2 cm
Depth / thickness of the device9,3 cm
Net weight0,203 kg
Device dimensions13,3 cm x 2 cm x 9,3 cm
Show whole descriptionHide item description

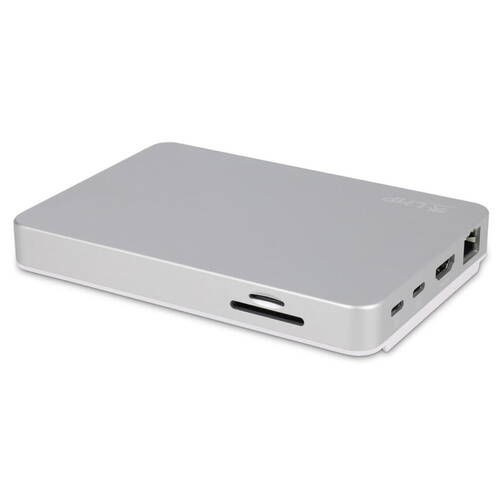

LMP USB-C DuoDock Silver

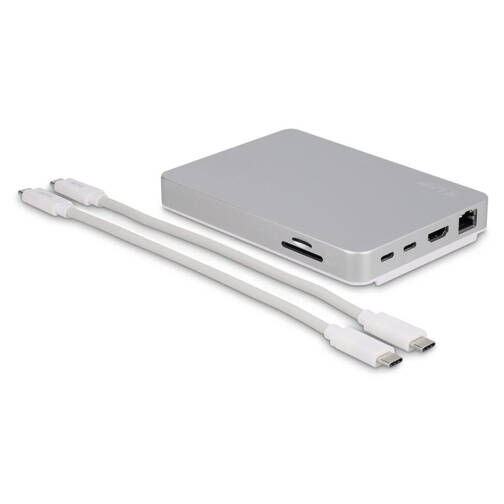

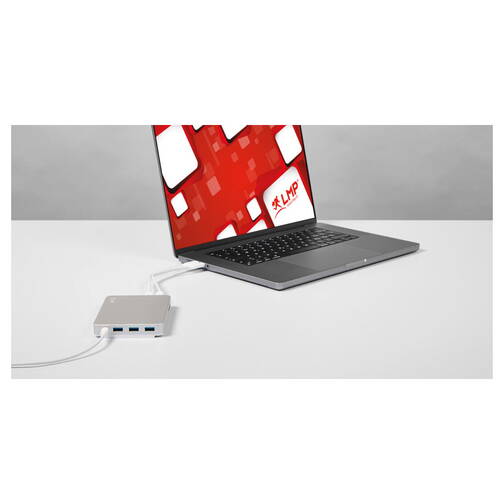

The LMP USB-C DuoDock combines dock and storage functionality in an elegant aluminium housing. The DuoDock can be attached to the base of the iMac 24" with a magnetic clip or used as a stand-alone dock on any Mac. The connection to the host is made via two USB-C cables - one for the dock functions and one for data transfer to the NVMe SSD. The dock offers a total of 9 ports including the slot for the M.2 PCIe NVMe SSD: 3x USB-A, 1x USB-C, 1x HDMI 2.0, 1x Gigabit Ethernet as well as an SD and a microSD card reader. The host can be supplied with power via the USB-C port via Power Delivery 3.0 (up to 100 W). The slot for the M.2 PCIe NVMe SSD offers space for 4 different SSD sizes: 2230, 2242, 2260 and 2280. Whether connecting to the peripherals or as lightning-fast data storage: the DuoDock performs its tasks in a duet and with elegance.

Show warranty and servicesHide warranty and services

Warranty and services

Duration and type of warranty2 years bring-in warranty
